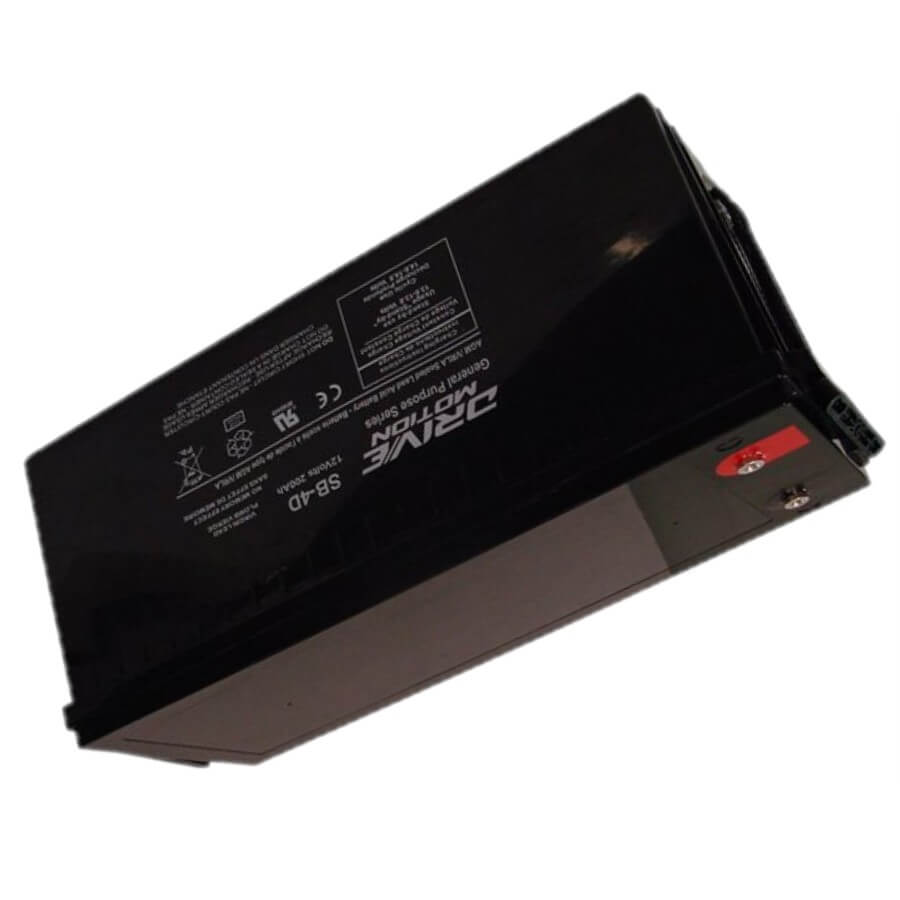

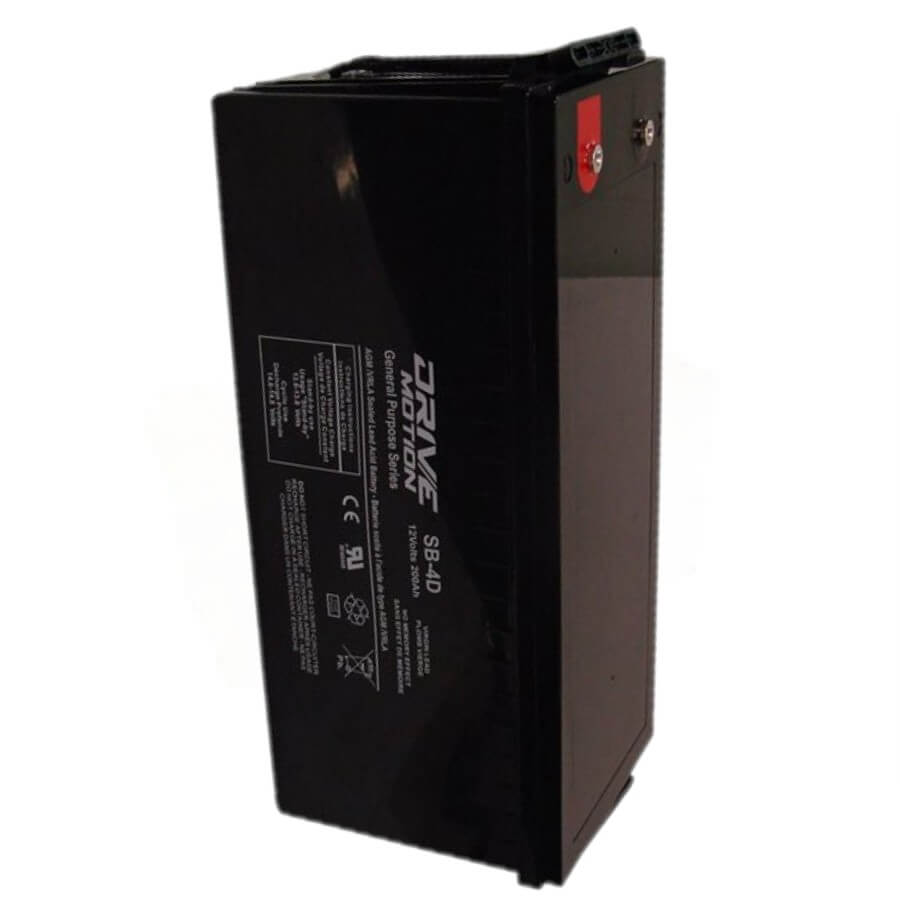

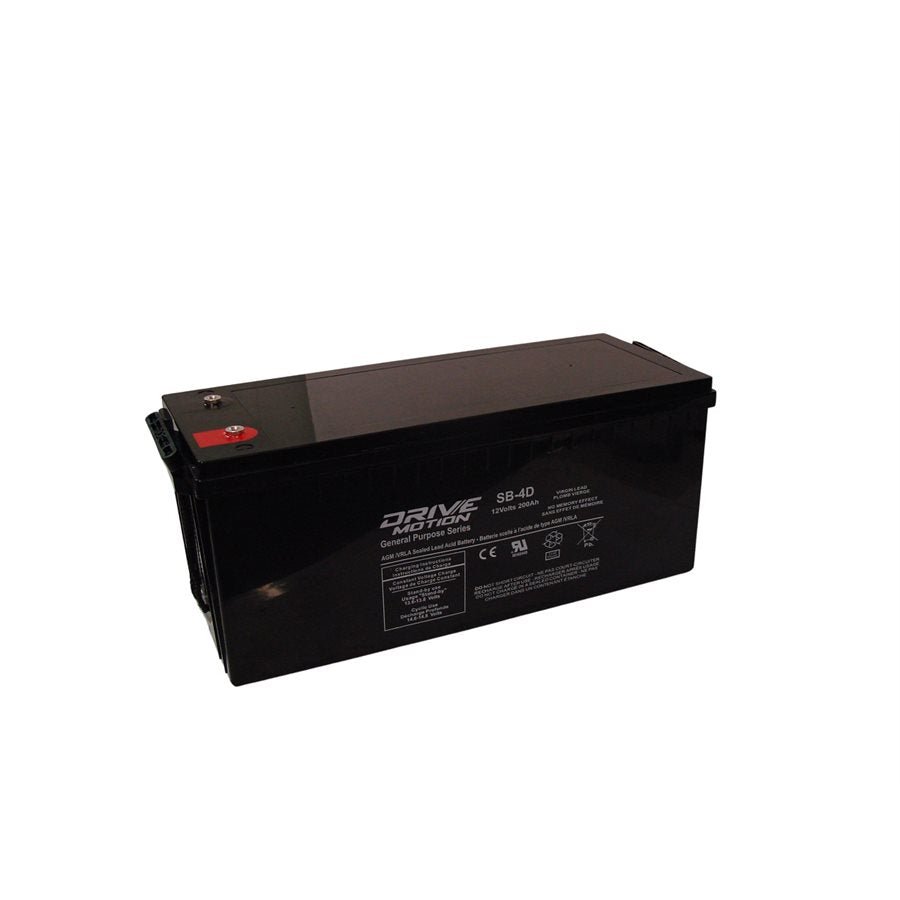

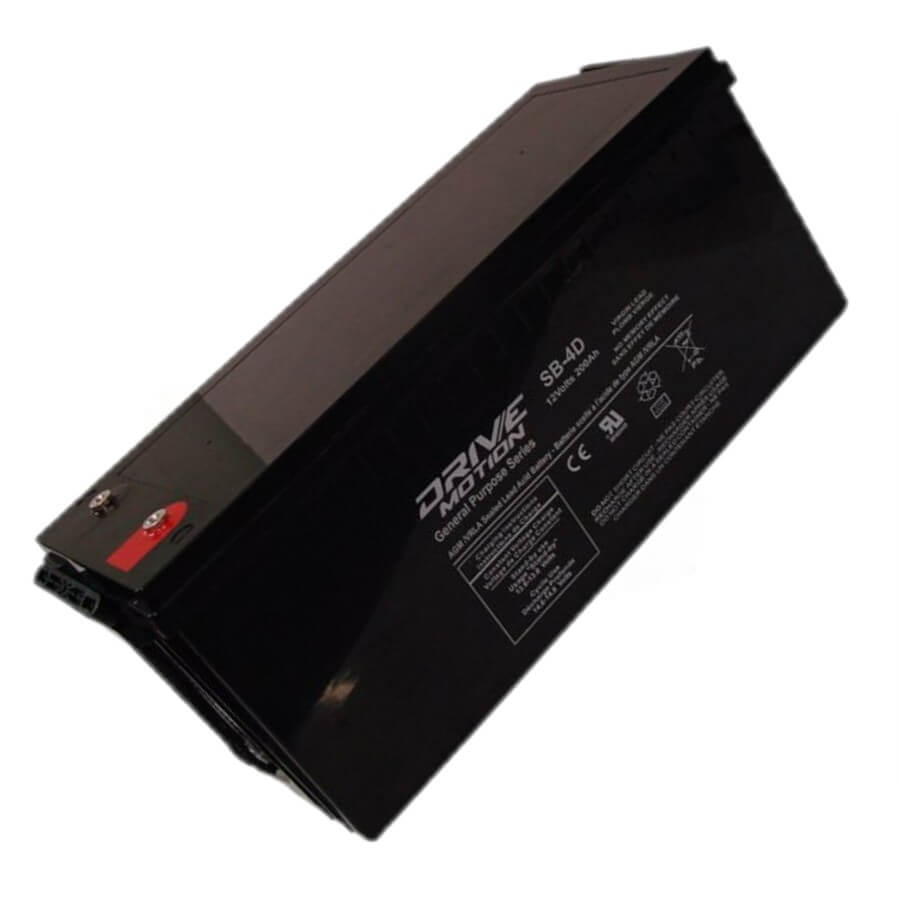

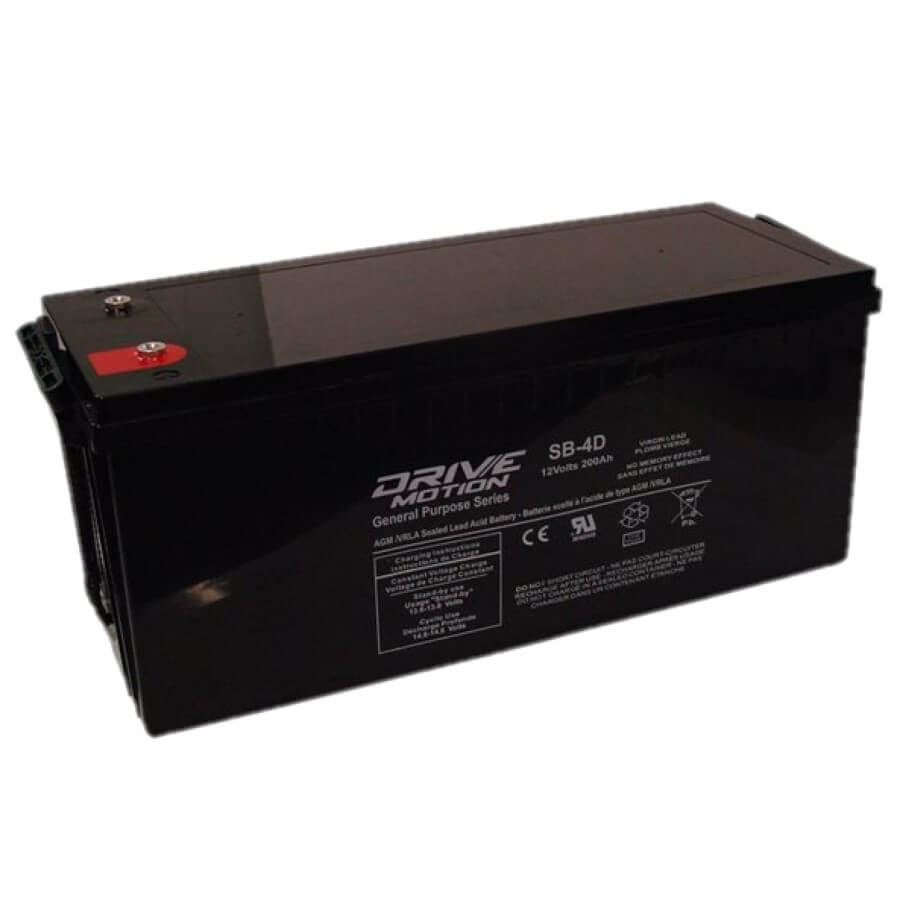

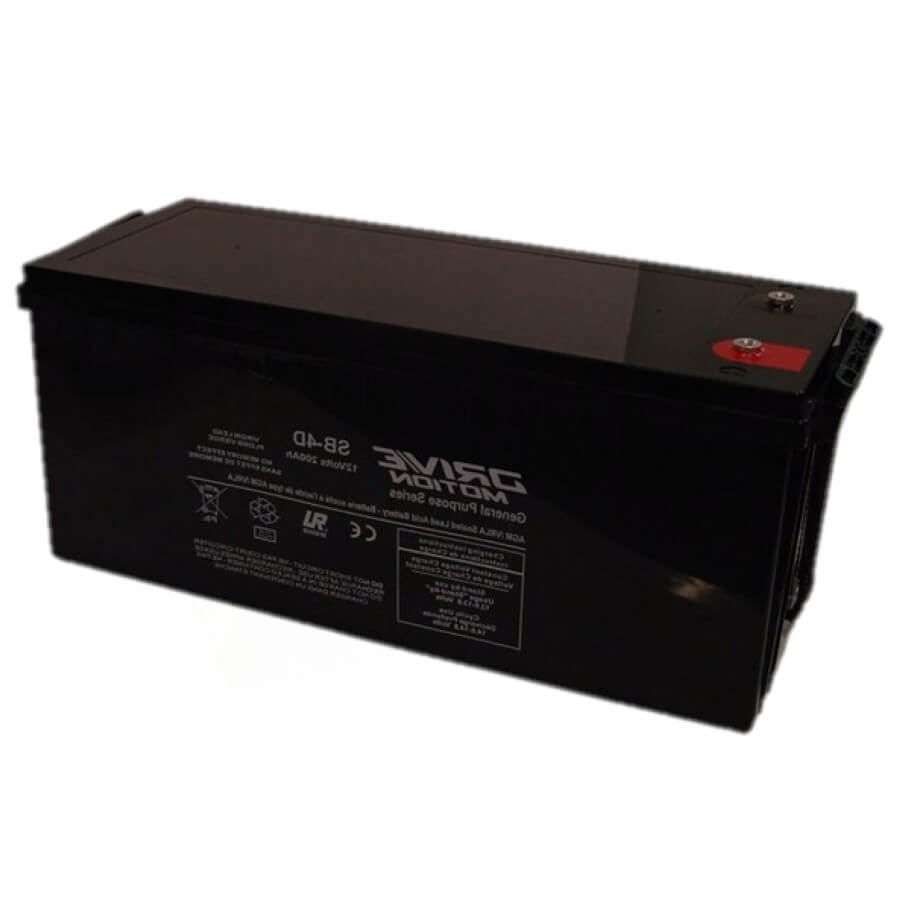

Batterie AGM 12V-200 Ah (4D)

DrivemotionSKU: SB-4D
0 avis

Prix:
Prix réduit$539.99 CAD

Estimer la livraison

Vidéo d'installation

Drivemotion SB-4D AGM Battery Specifications

Drivemotion SB-4D AGM Battery Specifications

Parameter Specification
Nominal Voltage 12 volts
Nominal Capacity 20 Hour Rate: 208 Ah
10 Hour Rate: 202 Ah
5 Hour Rate: 171.2 Ah
1 Hour Rate: 120.2 Ah
Number of Cells 6
Design Life 12 years
Internal Resistance ±4 mΩ
Operating Temperature Range Discharge: -40°C to 60°C
Charge: -20°C to 50°C
Storage: -20°C to 60°C
Max. Discharge Current 2000 A (5 sec)
Float Charge 13.6 to 13.8 Volts @ 25°C
Cyclic Charge 14.6 to 14.8 Volts @ 25°C
Self-Discharge Rate 3% per month at 25°C
Dimensions (L x W x H) 532 x 207 x 219 mm (20.94 x 8.15 x 8.62 inches)
Weight 51.5 kg
Terminal Configuration F12(M8)
General Features AGM technology (VRLA)
Maintenance-free
UL recognized
ISO certified
Can be mounted in any orientation
Applications UPS/EPS, medical equipment, emergency lighting, security systems

Description

Capacity:- 200 Ah
Chemistry:- Batterie AGM
Voltage:- 12V
Watt Hour:- 2400 Wh
Colour:- Noir
Dimensions(mm):- 494 x 205 x 209
Dimensions(Inches):- 19.44 x 8.07 x 8.22
Net Weight(g):-
Gross Weight(g):- 51.5
EAN Code:-
Special Remarks:-

Replaces These Brands:- Drivemotion
Replaces these battery models:- 4D
Replaces these device models:- 12V-200Ah (4D)
