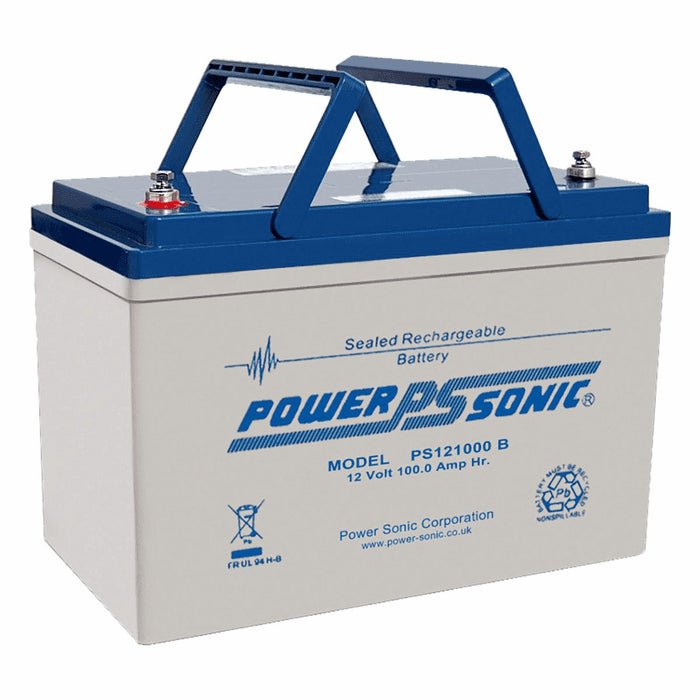

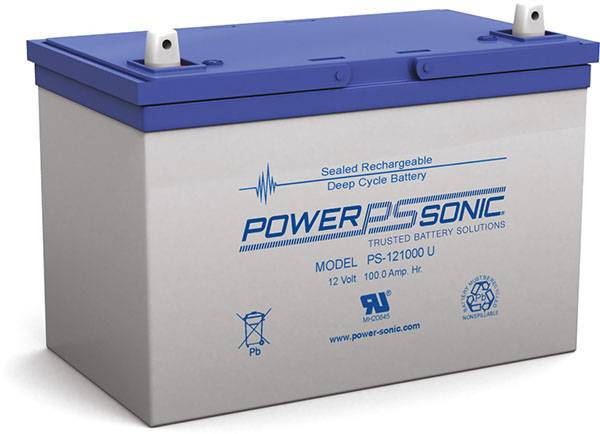

Power Sonic PS-121000 General Purpose Vrla Battery Replaces 12V-100.00Ah

The Power Sonic PS-121000 General Purpose VRLA Battery is a high-performance 12V sealed lead-acid battery with a capacity of 100.0 Ah at a 20-hour rate. This battery is designed for reliable and maintenance-free use in a wide range of applications. Below are the key specifications and features:

Features:

• 10–12 Year Design Life: Long-lasting and dependable performance for general-purpose applications.
• AGM Technology: Absorbent Glass Mat technology ensures superior performance and efficient energy storage.
• Valve-Regulated & Maintenance-Free: Spill-proof construction allows for hassle-free operation without the need for regular maintenance.
• Rugged Construction: Built with a durable ABS case for resistance to vibration and impact.
• Gas Recombination Technology: Reduces the need for water loss, enhancing battery longevity.
• High Energy Density: Exceptional power-to-volume ratio for optimized energy storage.
• Certified for Transportation: Approved for air transport with certifications from D.O.T., I.A.T.A., F.A.A., and C.A.B.
• Quality Standards: Manufactured under ISO9001:2015 quality management systems.

Performance Specifications:

• Nominal Voltage: 12 volts (6 cells).
• Capacity:
  • 20-hour rate (5.00A): 100.0 Ah to 10.50 volts.
  • 10-hour rate (9.52A): 95.2 Ah to 10.50 volts.
  • 5-hour rate (16.6A): 83.0 Ah to 10.20 volts.
  • 1-hour rate (57.9A): 57.9 Ah to 9.00 volts.
• Weight: Approx. 67.5 lbs (30.6 kg).
• Internal Resistance: ~4.9 milliohms.
• Maximum Short-Duration Discharge Current (10 Sec): 750.0 amperes.
• Operating Temperature Range:
  • Charging: 5°F (-15°C) to 122°F (50°C).
  • Discharging: -4°F (-20°C) to 140°F (60°C).

Charging Specifications:

• Cycle Use: 14.1–14.7V at 20°C.
• Standby Use: 13.5–13.8V at 20°C.
• Maximum Initial Current: 30A.

Physical Dimensions:

• Length: 12.00 in (305 mm).
• Width: 6.60 in (168 mm).
• Height: 8.15 in (207 mm).
• Total Height (including terminals): 8.98 in (228 mm).

Applications:

• General Purpose
• Emergency Lighting
• Medical Equipment
• Fire and Security Systems

This battery is ideal for customers seeking a reliable and durable energy solution for critical systems, offering excellent performance and minimal maintenance needs.
